Stepper Motor Controller IC

** PLEASE DESCRIBE THIS IMAGE **

USMC-01


Stepper Motor chip generates control signals that can be used with for both Unipolar & Bipolar Stepper Motors with appropriate drivers like the L298 & L293.

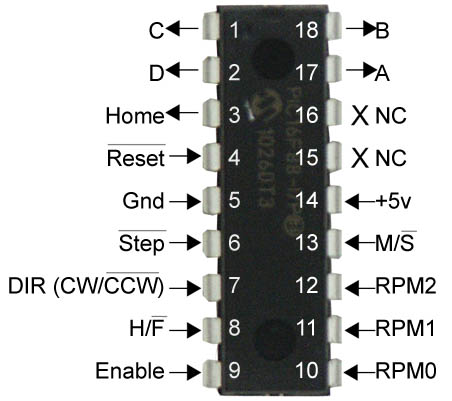

Stepper motor chip




Features:


· General / Hobby Purpose Stepper Motor Controller.
· Compatible with 4 Phase Unipolar / 2 Phase Bipolar Motors.
· Master / Slave mode - Standalone Free Running Mode.
· 8 RPM Selections in Free Running Mode.
· Compatible w/ Drivers - L298, L293, Discrete Transistors.
· Half / Full Wave: Step Modes, Direction Control, Enable.
· Power On Reset initializes controller
More Information



DataSheets: Manual Application Sheet Waveform

USMC-01 - $9.95
Stepper Motor Controller Controller IC

Back to Top

USB Stepper Motor Controller Kit

USB Stepper

This kit allows one to control a uni-polar stepper motor from Windows (comes with 12 volt Stepper Motor). The exclusive Windows interface is designed to teach fundamental stepper motor control. Automatic & manual control of the stepper motor is available through the Windows interface. Windows controls available are speed, direction full step, half step, and manual step. The controller is capable of operating motors from 5 Volts to 24 volts.




schematic


ST-USB-CTRL - $69.95
Windows USB Stepper Motor Controller Kit

Back to Top

Unipolar Stepper Motor Controller Kit

smc04

The stepper motor controller kit allows one to control a uni-polar stepper motor. The intuitive switch interface is designed to teach fundamental stepper motor control. Manual control of the stepper motor is available through the interface.








USMCK-UNI - $49.95
Unipolar Stepper Motor Controller Kit

Back to Top

Bipolar Stepper Motor Controller Kit

smc04

The stepper motor controller kit allows one to control a bi-polar stepper motor. The intuitive switch interface is designed to teach fundamental stepper motor control. Manual control of the stepper motor is available through the interface.








USMCK-BI - $49.95
Bipolar Stepper Motor Controller Kit

Back to Top

12V Stepper Motor

smc04

Fuji Electrochemical Co. P/N ST-04 is a unipolar 7.5 deg/step motor (six wires). Features include 50/100 s/rev, 12 V, 70 Ohm coil. These new motors are 1.65" (42mm) in diameter by 0.57" (14.5mm) thick. The shaft is 0.12" (3mm) in diameter by 0.39" (10mm) long. It has a 1.65" (42mm) square mounting bracket with 4 .01" (3.5mm) holes 1.38" (35mm) apart. There are six approximately 19" long leads wires that come out of this motor from two side by side holes, one hole has three wires, a red, a brown, and a black wire, and the other has 3 wires, a red, an orange, and a yellow.








ST-03 - $10.00
12V Stepper Motor

Back to Top

Stepper Motor Control Information

Step
A
B
A'
B'
Common
1
-
-
+
2
-
-
+
3
-
-
+
4
-
-
+
5
-
-
+


** PLEASE DESCRIBE THIS IMAGE **
