Images SI Inc. offers stand alone speech recognition hardware and technology for robotics and electronics. This hardware does not require a PC to fuctions. These low-cost speech recognition circuits can be incorporated and embedded into projects. We offer a full line of speech recognition interfaces, integrated circuits and components. Our speech controlled robotic arm is a perfect introduction to speech recognition technology for students and schools.


Speech Recognition Circuit SR-07 (assembled)

The SR-07 Speech Recognition Kit is a stand alone circuit that can recognize up to 40 words (user selected words) lasting one second esach or 20 words (user selected words or phrases) lasting 2 seconds each. The speech recognition circuit is multi-lingual, words to be trained for recognition may be in any language.










SR-07 - $184.35
Speech Recognition Circuit (assembled)



Speech Recognition Kit SR-06 (unassembled)

The SR-06 Speech Recognition Kit is a stand alone circuit that can recognize up to 40 words (user selected words) lasting one second each or 20 words (user selected words or phrases) lasting 2 seconds each. The speech recognition circuit is multi-lingual, words to be trained for recognition may be in any language.

Construction Manual (pdf)

Construction Article





SR-06 - $137.85
Speech Recognition Kit (Requires Assembly)

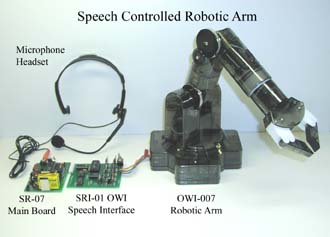

Speech Controlled Robotic Arm

The SCRA-02 incorporates three kits; the OWI 535 Robotic Arm, SR-06 Speech Recognition Circuit and the SRI-01 OWI speech interface circuit. By connecting these kits together you create a powerful speech control system capable of controlling the OWI-Robotic Arm Trainer using voice commands.

The SR-06 speech recognition circuit allows you to train any word(s) in any laguage to control the robotic arm.

You can purchase the kits seperately and build your system slowly or purchase them bundled together. Kits may be purchased needing assembly or assembled and tested. See prices below.





SCRA-02 $280.58 (Kit; Requires Assembly)
SCRA-02A $474.95 (Assembled & Tested)



SRI-01 Speech Recognition Interface

The SRI-01 connects the Speech Recognition Kit (SR-06 or SR-07) to the OWI-535 Robotic Arm. This allows control of the robotic arm functions using voice commands. Each function is controlled by a spoken word. The user trains the speech recognition circuit to recognize their voice and commands. Users may select their own words to control robotic arm function.






Item #SRI-01 (Kit)$95.55 *
Item #SRI-01A (Assembled)$130.41 *

(* requires both SR-07 and OWI-535)



SRI-02 Speech Recognition Interface w/Relays

SRI-02

The SRI-02 has ten numbered (1-10) relay switches. Each relay corresponds to a target word. Each numbered relay has a single-pole double-throw (SPDT) switch rated at 125 VAC at 0.5 amps or 24 VDC at 1.0 amps. Using this interface easily allows the speech recognition kit to activate or deactivate 10 electrical circuits or devices.

Selectable Output Options
1) Standard - one active output at a time.
2) Latched output - multiple active outputs
3) Momentary output - Selectable time

Item #SRI-02 $143.25 (unassembled)
Item #SRI-02A $178.11(assembled)



SRI-03 Speech Recognition Interface

SRI-03

The SRI-03 has ten (1-10) numbered logic outputs. Each output corresponds to one target word. Output is activated when word is recognized. Using this interface allows the Speech Recognition Kit to active or deactivate 10 electrical circuits or devices using the TTL logic signal. Selectable Output Options
1) Standard - one active output at a time.
2) Latched output - multiple active outputs
3) Momentary output - Selectable time


Item #SRI-03 $70.96(unassembled)
Item #SRI-03A $117.40(assembled)



SRI-04

SRI-04 X10 Speech Recognition Interface

The X10 Speech Recognition Interface SRI-04 is an interface board for the SR-06 and SR-07. The circuit allows the speech recognitiion kit to output On-Off commands via a X10 Power Line interface (PL513). The Interface can control up to 16 Appliance Control Modules (X10) on any of the 16 available house codes.

X-10 Speech Recognition Interface Article





SRI-04 $66.56 (unassembled)
SRI-04A $113.04 (assembled)

Choose Assembled or Kit:





Speech Recognition and Speech Generator Components

HM2007









HM2007 Data Booklet.

Using HM2007 in CPU mode
PDF file addendum to HM2007 data booklet

HM2007 FAQ

Speech Recognition and Speech Generator Component directory:

SR-06 and SR-07 Components
PCB-03
PCB (3 Printed Circuit Boards; Main, Display and Keypad) Construction Article.
$30.00
HM2007 PLCC
HM2007 IC 52PIN (PLCC)
Data Booklet
$65.00
6264
8K x 8 Static Ram (SRAM)
$8.00
HD-01
Microphone Headset
$6.95

Speech Generator Components
SPO-256-AL2
Speech Generator
$33.95
DS
$0.00
