RA-02 Robotic Arm Kit

Robotic Arm Kit (Manual & PC Windows Control)

Robotic Arm RA-02

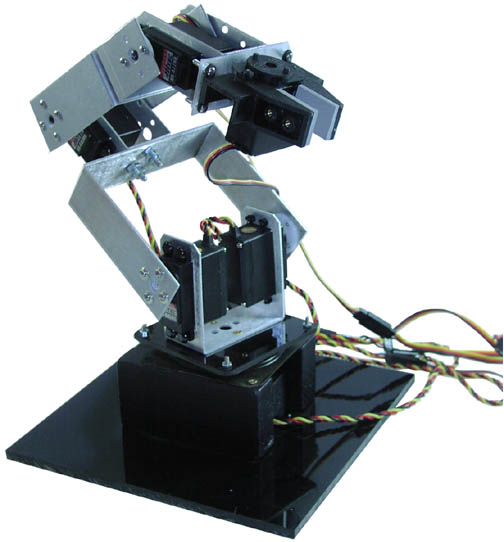

The RA-02 Robotic Arm teaches basic robotic principles. The RA-02 kit includes all components necessary to build the robotic arm shown at left.

The robotic arm kit also includes the SMC-05 5-position servomotor controller kit. The servomotor kit includes the pcb and all components necessary to build the servomotor controller (soldering is required). Using the 5-position servomotor controller see picture below one can control the robotic arm using the onboard three position switches to manually to grab, lift, lower, wrist rotate and pivot.

In addition the Windows (98/XP) control software Free Download Available! allows PC control through one of your PC's serial port. The windows program has a script writing feature that allows one to program the robotic arm with thousands of movements with full, precise and repeatable control of each movement. Scripts may hold a maximum of 10,000 movements (including pauses) with a maximum repetition of 10, 000.

View Robotic Arm Movement

Five Axes of Motion
Base rotation 180 degrees
Shoulder moving range 180 degrees
Elbow moving range 180 degrees
Wrist moving range 180 degrees
Gripper open and close 32 mm (1.25")
Lifting capacity N/A
Height ~15.5"
Maximum Horizontal Reach ~12"

Six Servomotor Robotic Arm Kit includes:

6 Servomotors
Servomotor Brackets
Robotic Arm Base
Servomotor Reverser
Servomotor Gripper
Servomotor Controller Kit
includes: PCB and components
Instruction Manual
CD with Windows Programs


High Resolution Video click here (1.95 Mb)

Low Resolution Video click here (589 Kb)

5-Position Servomotor Controller Kit (requires assembly)

For a complete listing of our available servomotors go to our
Servo Motor Page

For manual and Windows PC servo motor controllers go to our
Servo Motor Controller Page

Screen Image

Download 5-servo controller program for Windows 98 (2.4 MB)
Download 5-servo controller program for Windows XP (2.4 MB)
for non-commercial use only*

* Commercial Applications must be licensed

Unassembled Robotic Arm Kit RA-02 $449.95
Assembled Robotic Arm Kit RA-02A $599.95

Choose Item:
