Two-Directional Bi-Flex Sensors™

Two-Directional Bi-Flex Sensors™ - FLX-01

Images new bi-directional Bi-Flex Bend Sensor™ is a unique component that changes resistance when bent. An un-flexed sensor has a nominal resistance of 10,000 ohms (10 K). As the flex sensor is bent in either direction the resistance gradually decreases.
Sensor is also pressure sensitive, and may be used as a force or pressure sensor
The flex sensor operating temperature is -45F to 125F.

Bi-Directional Flex Sensor

The sensor measures 3/8 inch wide, 4 1/2 inches long and only .038 inches thick!
To see the dimensions Click Here

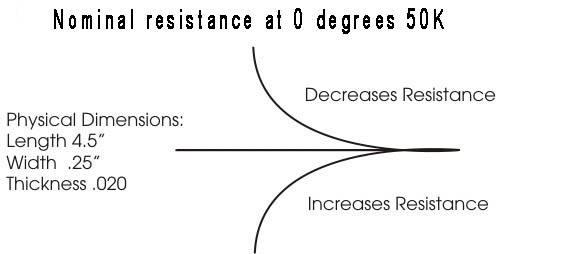

flex sensor operation


Customer Projects
Interactive Learning Glove








Some applications for the Flex Sensor are:

  • Collision detection on mobile robots
  • VR Gloves and VR suits
  • Physics applications and experiments

Available in three resistance ranges:

  • FLX-01-L Low resistance range, nominal resistance between 1K - 20K
  • FLX-01-M Medium resistance range, nominal resistance between 20K - 50K
  • FLX-01-H High resistance range, nominal resistance between 50K - 200K

FLX-01 - $9.95          Bi-Directional Flex Sensor

                Enter Quantity:

Back to Top


One-Directional Flex Sensors

One-Directional Flex Sensors - FLX-03

One directional Flex Sensor is a unique component that changes resistance when bent or flexed (Patent 5086785). An un flexed sensor has a nominal resistance of approximately 10,000 ohms (10 K). As the flex sensor is bent in one direction the resistance gradually increases. Range of resistance's of the FLX-03 sensor may vary between 10K and 40K depending upon the degree of the flex.

The flex sensor operating temperature is -45F to 125F.

Bi-Directional Flex Sensor Connection - Pin connector .100" spacing

The sensor measures 1/4 inch wide, 4 1/2 inches long and only .019 inches thick!
To see the dimensions Click Here

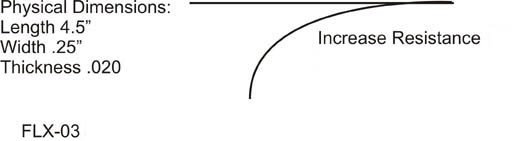

Flex Sensor operation

Some applications for the Flex Sensor are:

  • Collision detection on mobile robots
  • VR Gloves and VR suits
  • Physics applications and experiments


FLX-03 - $11.95
Flexible Bend Sensor

                Enter Quantity:

Neoprene Flex Sensor Kit - NFS-01

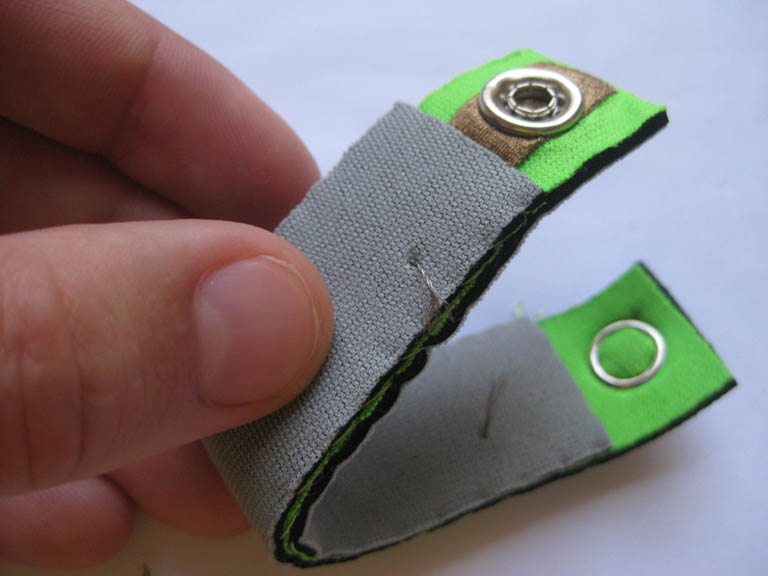

Neoprene Flex Sensor Kit        Construction Information

**THIS IS A KIT AND REQUIRES ASSEMBLY**

Some applications for Flex Sensors are:

  • Wearable technology and e-textiles
  • Collision detection on mobile robots
  • VR Gloves and VR suits
  • Physics applications and experiments

NFS-01 - $15.00
Neoprene Flex Sensor

                Enter Quantity:

Back to Top

Bi-directional Flex Sensor Components

Flex Sensort Components
            Flex Sensor Construction Article

FSC-01 $2.50
Single sided 6" x 2" laminated copper
FSC-02 $2.50
5" x 3" resistive material
FSC-03 $1.00
4" x 5.5" .010 Acetate
FSC-04 $1.00
3/8" Heat shrink tubing 1 foot


Back to Top


Out of Spec Bi-directional Flex Sensors

Bi-Directional Flex Sensor All sensors are operational, but are out of specifications for varying reasons. Sensors are not hand selected; Sold as is. No Returns.



FLX-01-OOS - $4.00
Out of Spec Bi-Directional Bend Sensor

Enter Quantity:
