Serial LCD 16 x 2 Alphanumeric Display Module with backlight

** PLEASE DESCRIBE THIS IMAGE **

** PLEASE DESCRIBE THIS IMAGE **

Features:
  • 16 characters x 2 lines
  • High-contrast supertwist display
  • LED Backlight
  • Inverted or true TTL / CMOS at 300, 1200, 2400, 9600 and 19200 baud.

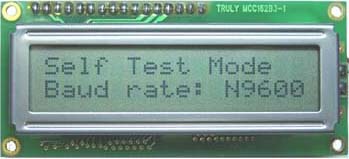

  • Self-testing mode (pictured at left) to check proper function and jumper settings.
  • Power: 4.8 - 5.2 VDC @ 4 mA *
  • Size: 3.1" L x 1.4" W
  • Weight: 0.1 lbs

See the datasheet for more information.

* current draw with backlight turned off.
** New board may not look identical to picture

Serial LCD Module - $49.95
LCD-02


Back to Top

16x2 LCD Module

** PLEASE DESCRIBE THIS IMAGE **
Features:
  • 16 characters x 2 lines
  • High-contrast supertwist display
  • LED Backlight
  • Standard HD44780 operation
  • Self-testing mode (pictured below) to check proper function and jumper settings
  • Power Requirement: 4.8 - 5.2 VDC, approximate. 4 mA *
  • Size: 3.1" L x 1.4" W
  • Weight: 0.1 lbs

See the PDF datasheet file for more information on the LCD-04, including pinout, technical specifications and interfacing details.

* with backlight turned off.

16x2 LCD Module - $7.95
LCD-04
