Nuclear Geiger Counter Experiment #1

Energy Spectrum of Strontium 90 Beta Radiation Source


Experiment 2 >


We classify the beta energy spectrum as the intensity of a beta beam at different particle energies. Strontium 90 emits two beta energeies, one at 0.546 MeV and the other at 2.28 MeV, see chart below.



SR90 Chart Beta Energy Decay

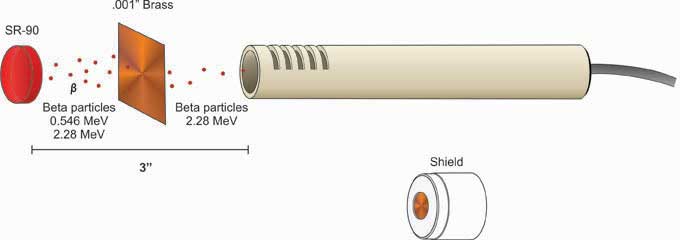

Using a .001 brass shield one can separate the 0.56 MeV from the 2.28 MeV beta particles from an SR-90 source. The 0.56 MeV can be blocked using a simple sheild. We can meausre the difference using an accurate CPM count from a geiger counter.

Strontium Beta decay experiment

See chart below.

Open Shield with 1 Mil (.001) Brass Shield
Sample Distance Count CPM Sample Distance Count CPM
Sample 1 2" 370 Sample 1 2" 244
Sample 2 " 400 Sample 2 " 251
Sample 3 " 403 Sample 3 " 247
Sample 4 " 382 Sample 4 " 246
Sample 1 3" 219 Sample 1 3" 135
Sample 2 " 206 Sample 2 " 149
Sample 3 " 194 Sample 3 " 121
Sample 4 " 195 Sample 4 " 120
Sample 1 4" 127 Sample 1 4" 77
Sample 2 " 119 Sample 2 " 98
Sample 3 " 124 Sample 3 " 87
Sample 4 " 134 Sample 4 " 82


Results

Average CPM with no shield Average CPM with 1 Mil (.001) Brass Shield % reduction in measured radiation
2" 404 176 44%
3" 164 84 51%
4" 100 55 55%
