PIC Microcontroller Hardware

PIC Microcontoller Hardware Text Index >>>

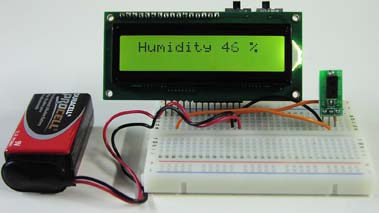

PIC 16F88 Basic Project Board


Online Tutorial Article Here


16F88 Board with I/O pin out16F88 Pinout

16F88 PIC Basic Project Board Features

* LCD Display - backlight & contrast control
* 2 A/D Channels
* 8 digital I/O lines
* 5V and 9V operation
* I/O and Power header for use with solderless breadboard or mother board
* 16F88 PIC Microcontroller Project Book Pt1. (Avail 12-15-2013 or sooner)
* Free Student version of PICBASIC PRO & Microcode Studio with book.
Online Tutorial Article Here

See PCB Project Board Here

See LCD Specs

PCB-75 - $6.99
PIC Basic Project Board
16F88-PB-LCD - $19.88
PIC Basic Project Board with LCD Module
16F88-PB-Bundle - $29.88
Pre-order
   Includes:
   -16F88-PB-LCD
     PICBasic Project Board with LCD Module
   -BK-29
     16F88 PIC Microcontroller Project Book Pt. 1
   -16F88-CD
     PICBasic Pro Student Edition Compiler CD
     Only (Manual Sold Separately)


Sensors

Humidity Sensor
Temperature Sensor
Toxic Gas Sensor
Flex Sensors
Force Sensors

CdS Light Sensor

Do More:

Frequency Meter
Pulse Generator
Elapse Timer
Radiation Pulse Counter
Random Number Generator
Volt Meter

*FREE VERSION OF SOFTWARE DOES NOT INCLUDE MANUAL

Back to Top

Serial LCD Module

** PLEASE DESCRIBE THIS IMAGE **

16 character x 2 lines, high-contrast, backlit supertwist LCD modules can receive serial data at 300, 1200, 2400 or 9600 baud (either inverted or true TTL/CMOS (RS232)). Printed manual included.

Click here to see complete data sheet for more information.

LCD-02 - $22.95
Serial LCD

Back to Top

16x2 LCD Modules

** PLEASE DESCRIBE THIS IMAGE **

16 character x 2 lines, high-contrast, backlit supertwist LCD modules. Standard 16-pin connection.

Click here for the LCD-04 datasheet that conatins additional information, technical specifications and interfacing details.

LCD-04 $9.95
16x2 LCD Module

LCD-DS $3.50
16x2 LCD Module Datasheet


Choose Adapter:

Back to Top

ZIF Adapters

Zif Adapter

These adapters connect to the EPIC Programmer's 10-pin expansion header to allow programming of 28 and 40 pin PICmicros in DIP, PLCC and surface mount packages.

ZIF-01 - $29.95
8/18 pin DIP ZIF adapter

ZIF-02 - $34.95
28/40 pin DIP ZIF adapter


Choose Adapter:

Back to Top

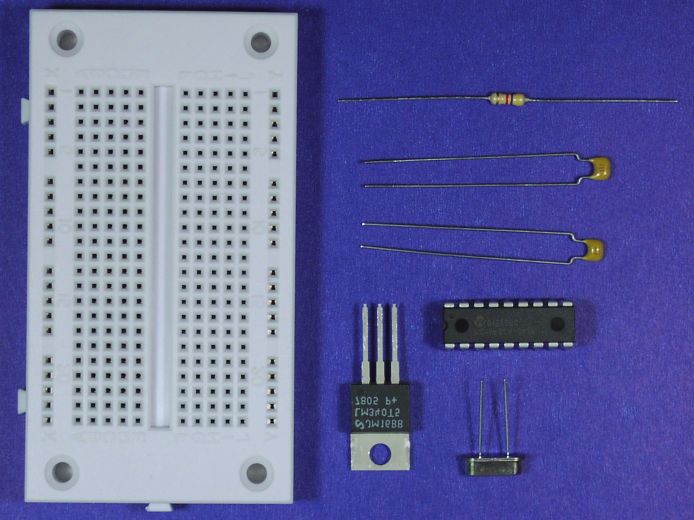

Standard Parts Package

** PLEASE DESCRIBE THIS IMAGE **

(1) PIC16F84-04, (1) 4MHz crystal, (2) 22pF caps, (1) 4.7K 1/4 watt resistor, 7805 Voltage Regulator, (1) Solderless bread board (2.1" x 3.6" 270 tie points).

PIC-STD-01 - $19.95
Standard Parts Package

Back to Top

18-Pin PIC Prototyping Board

** PLEASE DESCRIBE THIS IMAGE **
** PLEASE DESCRIBE THIS IMAGE **

Printed Circuit Board

  • High Quality double sided PC board
  • Solder mask both sides
  • 9 volt battery terminals
  • On-off switch
  • Overall Dimesnions 1.25" x 2.5"
Compatible with the following microcontrollers:

U1--PIC 16C52, 54, 56, 58, 554, 558, 61, 620, 621, 622, 71, 710, 711, 712, 715, 716, 717, 84, 16CE623, 624, 625, 16F54, 627, 628, 648A, 716, 818, 819, 83, 84, 87, 88, 16hv540, 18f1220, 1230, 1320, 0r 1330.

Parts
  • 1 4.0 MHz Crystal (X-TAL 4.0)
  • 2 22pf Capacitors (CAP-22pf)
  • 2 22uf Capacitors
  • 1 Voltage Regulator 7805
  • 1 4.7K Resistor (RES-4.7K)
  • 1 470 Ohm Resistor (RES-470 Ohm)
  • 1 Sub Min LED
  • 1 1N4007 Diode
  • 1 9 Volt Battery Terminal (BAT-05)
  • 1 9 Volt Battery Terminal (BAT-06)
  • 1 On-Off PC Mount Switch (SW-06)
  • 1 18 Pin Socket (ISC-18)

PCB-27 - $5.95
(Board Only)

Parts-27 - $9.95
(Parts Only)

PCB-27WP - $14.95
(Parts & Board)

Choose Part:

Back to Top

18-Pin PIC Prototyping Board

** PLEASE DESCRIBE THIS IMAGE **
** PLEASE DESCRIBE THIS IMAGE **

Printed Circuit Board

  • High Quality double sided PC board
  • Solder mask both sides
  • 9 volt battery terminals
  • On-off switch
  • Overall Dimesnions 1.75" x 2.5"
Compatible with the following microcontrollers:

U1--PIC 16C52, 54, 56, 58, 554, 558, 61, 620, 621, 622, 71, 710, 711, 712, 715, 716, 717, 84, 16CE623, 624, 625, 16F54, 627, 628, 648A, 716, 818, 819, 83, 84, 87, 88, 16hv540, 18f1220, 1230, 1320, 0r 1330.

Parts
  • 1 4.0 MHz Crystal (X-TAL 4.0)
  • 2 22pf Capacitors (CAP-22pf)
  • 2 22uf Capacitors
  • 1 Voltage Regulator 7805
  • 1 4.7K Resistor (RES-4.7K)
  • 1 470 Ohm Resistor (RES-470 Ohm)
  • 1 Sub Min LED
  • 1 1N4007 Diode
  • 1 9 Volt Battery Terminal (BAT-05)
  • 1 9 Volt Battery Terminal (BAT-06)
  • 1 On-Off PC Mount Switch (SW-06)
  • 1 18 Pin Socket (ISC-18)
  • 1 W01M Bridge Rectifier
  • 1 PJ-102B PC Mounted Jack
  • 1 Push Button (Momentary) Switch (SW-03)

PCB-28 - $6.95
(Board Only)

Parts-28 - $12.95
(Parts Only)

PCB-28WP - $18.95
(Parts & Board)

Choose Part:

Back to Top
