The Analog Digital radiation meter counts the pulse output of a standard analog Geiger counter. It provides a visual readout of the CPS, approximate radiation level (imperial/metric) and analog radiation field strength meter.


  • 8-12VDC or 5VDC power supply input
  • Counts TTL pulses from Analog Geiger Counter
  • Outputs Digital Counts Per Second (CPS) value
  • Outputs radiation level (imperial / metric)
  • LCD Backlight
  • Available as a kit or assembled

The Analog Digital meter alternates the first line of its display between Counts Per Second (CPS) and then approximate radiation level in either imperial measurements (mR/hr) or metric measurements (mSv/hr). The top line of the display alternates its display every second. The 2nd LCD line is a analog radiation field strength meter that provides a quick visual indication of the current CPS reading.

To fit nicely on the 8 character display line the imperial measurement of mR/hr is abbreviated to mR. Likewise the meteric measurement of mSv/hr is abbreviated to mS.

The second line of the 8x2 LCD is a dedicated analog power meter to read a reasonable approximation of CPS from 1 CPS to 2040 CPS.

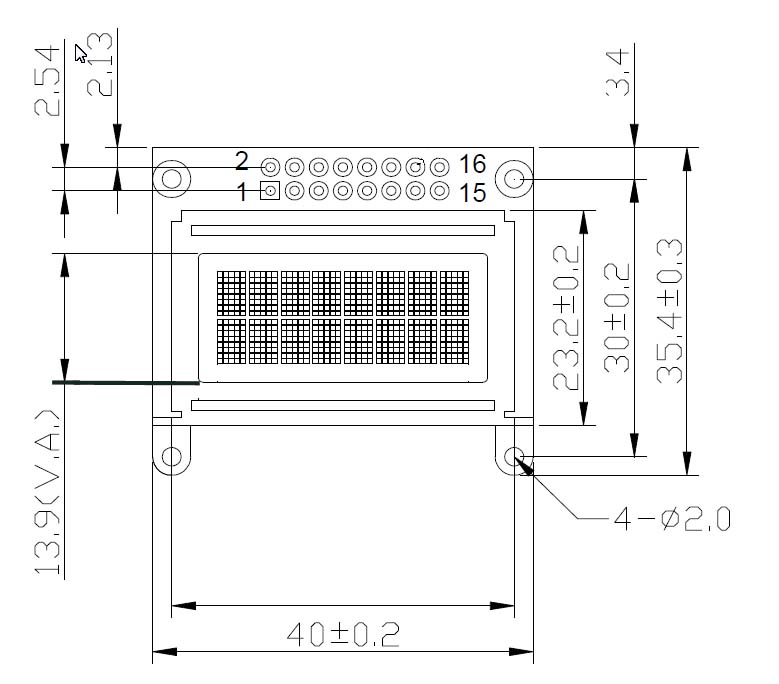

Click here to see mounting outline measurements.

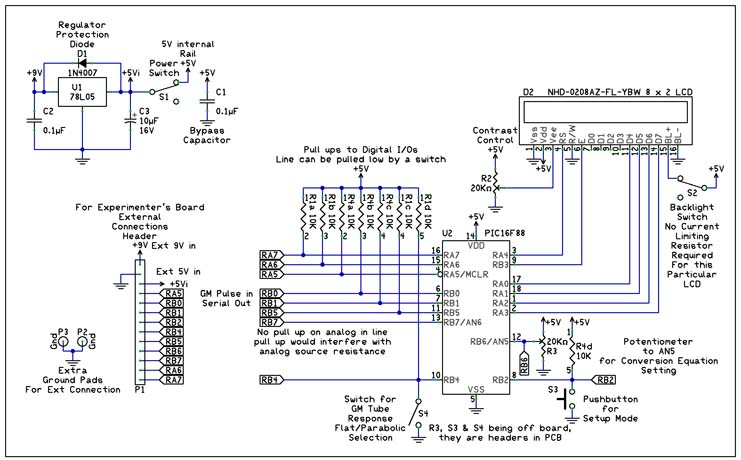

Click here to see schematic.

Analog Digital Radiation Meter
ADM-01A - $64.55 Assembled and tested

ADM-01K - $45.55 Kit requires assembly


meter faceplate This faceplate mounts the ADM meter above into the round panel opening of a CDV715 meter. Material is approximately 1/8" thick black plastic.

FB-01 - $6.00
